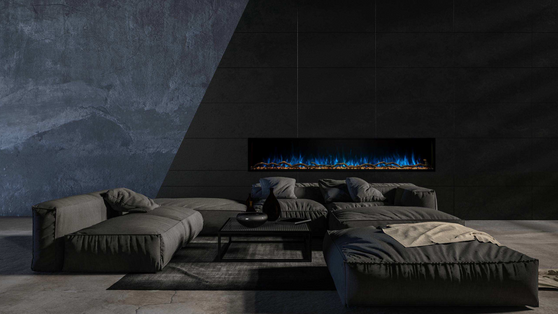

Modern Flames Landscape Pro Slim 96" Built-In Electric Fireplace - LPS-9614

$4,649.00
Write a Review
SKU:
LPS-9614
UPC:
5934700298
Weight:
100.00 LBS
Shipping:
Calculated at Checkout
Glass Height
13 5/8"
Glass Width
95 5/8"
Unit Height
23 3/4"
Unit Width
96 1/16"
Unit Depth
5 3/8"
Framing Height
24 1/8"
Framing Width
96 1/4"
Framing Depth
6"
Non-Glare Front
Control Upgrade

Description

Modern Flames Landscape Pro Slim 96" Electric Fireplace

The Landscape Pro Slim 96" combines independently adjustable LED flames, ember lighting, and downlighting with a shallow, single-sided firebox. A Canyon Driftwood log set and RGB color controls make it a flexible focal point for a media wall or living space.

Modern Flames Landscape Pro Slim series fireplace

Three Independent Color Zones

Adjust flame, ember bed, and downlight colors separately. Use the remote color wheel and brightness slider to create coordinated lighting or contrasting accents.

Shallow Firebox

The V2 firebox is 5-3/8" deep. The manual covers a fully recessed installation suited to 2x6 framing and a partially recessed installation suited to 2x4 framing.

5,000 BTU Heating

A 120V ceramic heater provides supplemental warmth. Enjoy the flame and lighting effects independently of the heat.

What's Included

Included Fireplace Features

Fireplace & Finish

  • LPS-9614 electric fireplace
  • Front glass and trim
  • L-metal mounting brackets
  • Installation hardware and suction cup

Logs & Lighting

  • 16-piece Canyon Driftwood log set
  • Smoke acrylic crystals and clear acrylic stones
  • Independent RGB flame, ember bed, and downlight zones
  • Adjustable flame speed and brightness

Controls & Heating

  • Pro Series handheld remote and CR2032 battery
  • Built-in manual controls
  • WiFi control with the Modern Flames app
  • 120V, 5,000 BTU supplemental heater

Optional Accessories

Mesh Screen

A model-matched optional mesh screen offers an alternative front presentation. Sold separately; follow the screen guide for glass removal and screen installation.

Wireless Wall Touch Control

The MF-PRO-V2-WTC wall control is sold separately. Review the guide for mounting and pairing.

Specifications

LPS-9614 Specifications

Dimensions and heater power below follow the July 2025 V2 manual. The original model spec sheet is also linked in Downloads; confirm the appliance version before framing.

[[SPECIFICATIONS]]

Specification LPS-9614
Series Landscape Pro Slim
Store Model Number LPS-9614
Model Listed in Supplied Manual LPS-9614V2
Heating Capacity 5,000 BTU
Voltage / Heater Power 120V, 60Hz / 1465W
Connection Hardwired installation; dedicated circuit per manual
V2 Appliance Dimensions 96-1/16" W x 23-3/4" H x 5-3/8" D
V2 Viewing Area 95-5/8" W x 13-5/8" H
V2 Fully Recessed Framing 96-1/4" W x 24-1/8" H x 6" D
Included Logs 16 Canyon Driftwood logs
Installation Single-sided fully or partially recessed installation
Outdoor Use Covered outdoor use only; follow manufacturer protection and clearance requirements

Downloads

Downloads & Resources

Document What It Covers Download
Installation Manual July 2025 V2 dimensions, wiring, installation, and controls. Open Manual
96" Model Spec Sheet Original model reference drawing; compare with the V2 manual for your appliance version. Open Spec Sheet
Linear Brochure Series features and installation overview. Open Brochure
iPhone / iOS WiFi Guide Platform-specific setup reference. Open iOS Guide
Android WiFi Guide Platform-specific setup reference. Open Android Guide
Log Set Sizes Model-specific log layouts. Open Log Guide
Optional Mesh Screen Screen fitting and installation. Open Screen Guide
Pro Series Remote Guide Color zones, brightness, heat, and pairing. Open Remote Guide
Wireless Wall Touch Control Optional wall control installation and pairing. Open Wall Control Guide
Outdoor Requirements Required cover, protection, and clearances. Open Outdoor Guide
Outdoor Rated Assertion Rating documentation for listed LPS and LPM models. Open Rating Document

Remote

Remote & App Controls

Flame & Color

  • Select the flame zone and choose an RGB color
  • Adjust brightness with the slider
  • Cycle flame and ember bed speeds
  • Select static or changing color patterns

Ember Bed & Downlighting

  • Select ember bed or downlight zone independently
  • Choose zone color and brightness
  • Coordinate colors across the fireplace
  • Use Home/Reset to restore default colors

Heat & Power

  • Power on/off
  • High, low, and off heat settings
  • Built-in manual controls
  • Pair the remote using the V2 manual instructions

Modern Flames WiFi App

iPhone & iOS

Follow the iOS reference and V2 manual to pair the fireplace and adjust lighting and heater settings.

Android

Follow the Android reference and V2 manual to pair the fireplace and adjust lighting and heater settings.

Installation

Installation Planning

Fully Recessed

Use the model-specific V2 framing dimensions for a 2x6 wall installation. Verify the actual appliance and required finish details before closing the wall.

Partially Recessed

The manual also covers a partial recess suited to 2x4 framing. Follow the mounting and finish details for that configuration.

Covered Outdoor Use

Install only under the required patio cover, away from direct sunlight and direct water contact. Follow the specified front and side protection and clearances.
