Description

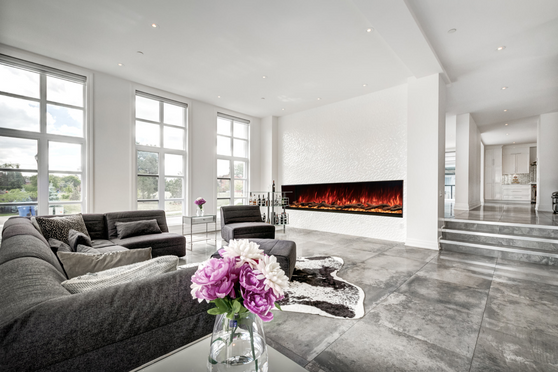

Modern Flames Landscape Pro Multi 96" Electric Fireplace
The Landscape Pro Multi 96" brings adjustable LED flames, independent lighting zones, and a Canyon Driftwood log set to feature walls and room corners. Choose a single-sided, corner, or three-sided presentation to suit the installation.
Three Independent Color Zones
Set the flame, ember bed, and downlight colors separately. RGB color selection, brightness adjustment, and changing color patterns let you tailor the fireplace to the room.
Flexible Installation
Configure the fireplace as a single-sided built-in, left or right corner, or three-sided bay. Partial recess and suite installations provide additional ways to finish the wall.
5,000 to 10,000 BTU Heating
PTC ceramic heating provides 5,000 BTU at 120V or 10,000 BTU with optional 240V wiring. Operate the flame and lighting effects independently of the heat.
Key Highlights
Canyon Driftwood Logs
The included hand-painted Canyon Driftwood log set adds natural-looking texture above the acrylic ember media. This 96" model includes 11 logs.
Adjustable Flame Speed
Change flame movement to suit the setting. Choose a steady color presentation or use color-changing modes for a different atmosphere.
Remote & WiFi Control
Use the included Pro Series handheld remote or the Modern Flames app. An optional wireless wall touch control adds another control location.
What's Included
Included Fireplace Features
Fireplace & Glass
- LPM-9616V2 electric fireplace
- Front glass and two side glass panels
- Two metal side panels
- Installation hardware and suction cups
- One-piece trim kit
Logs & Lighting
- 11-piece Canyon Driftwood log set
- Smoke acrylic crystals and clear acrylic stones
- Independent flame, ember bed, and downlight color zones
- Adjustable brightness and flame speed
Controls & Heat
- Pro Series handheld remote and CR2032 battery
- Built-in manual controls
- WiFi control through the Modern Flames app
- PTC ceramic heater with optional 240V installation
Optional Five-Piece Trim Kit
Trim kit 02-00291-05 fits this 96" V2 model for bay/three-sided or left/right open-side installations. Sold separately.
Optional Wall Touch Control
The MF-PRO-V2-WTC wireless wall mounted touch control is sold separately. Review the installation guide for pairing and mounting information.
Specifications
LPM-9616V2 Specifications
Dimensions below follow the June 2025 V2 installation manual. Match the framing method to the selected configuration and verify the appliance before finishing the opening.
[[SPECIFICATIONS]]
| Specification | LPM-9616V2 |
|---|---|
| Series | Landscape Pro Multi |
| Model Number | LPM-9616V2 |
| Heating Capacity | 5,000 BTU at 120V / 10,000 BTU at 240V |
| Voltage / Connection | 120V or optional 240V hardwired installation |
| Heater Power | 1465W at 120V / 2930W at 240V |
| Appliance Dimensions | 96-1/16" W x 24-7/8" H x 11-9/16" D |
| Viewing Area | 95-1/4" W x 15-7/8" H |
| Viewing Depth | 5-5/16" |
| Fully Recessed Framing | 96-3/8" W x 25-1/4" H x 12" D |
| Included Log Set | 11-piece Canyon Driftwood log set |
| Installation Options | Single-sided, left or right corner, three-sided/bay, partial recess, or supported wall mount/suite installation |
| Outdoor Use | Covered outdoor installations only, subject to manufacturer protection and clearance requirements |
Downloads
Downloads & Resources
Installation, WiFi setup, remote operation, media layouts, accessories, and covered outdoor installation resources.
| Document | What It Covers | Download |
|---|---|---|
| Installation Manual | June 2025 V2 installation, dimensions, wiring, media, and controls. | Open Manual |
| Linear Brochure | Landscape Pro series features, installation options, and accessories. | Open Brochure |
| 96" Model Spec Sheet | Original model reference sheet; use the June 2025 V2 manual for current V2 framing and appliance dimensions. | Open Spec Sheet |
| iPhone / iOS WiFi Instructions | Platform-specific WiFi setup reference. | Open iOS Guide |
| Android WiFi Instructions | Platform-specific WiFi setup reference. | Open Android Guide |
| Driftwood Log Set Sizes | Model-specific log arrangements and sizes. | Open Log Guide |
| Pro Series Remote Guide | Remote zones, color wheel, brightness, and pairing. | Open Remote Guide |
| Wireless Wall Touch Control | Optional MF-PRO-V2-WTC installation and operation. | Open Wall Control Guide |
| Wall Mount Studio Suites | Size-specific wall mount suite installation. | Open Suite Guide |
| Outdoor Installation Requirements | Required weather protection, roof overhang, and clearances. | Open Outdoor Guide |
| Outdoor Rated Assertion | Outdoor rating documentation for listed LPM and LPS models. | Open Rating Document |
| Five-Piece Trim Kit | Bay and left/right open-side trim kit installation. | Open Trim Guide |
Remote
Remote & App Controls
Flame Color & Movement
- Select the flame zone before adjusting color
- Choose colors with the remote color wheel
- Adjust brightness for the selected zone
- Cycle available speed and color-changing modes
Ember Bed & Downlighting
- Control ember bed and downlight zones independently
- Adjust zone color and brightness
- Use coordinated colors or contrasting lighting
- Return to default settings with the Home/Reset control
Power & Heat
- Power on/off from the handheld remote
- Cycle high, low, and off heat settings
- Use manual controls on the fireplace
- At 120V, low and high have the same heat output on US LPM units
Handheld Remote
The included Pro Series remote provides zone selection, color and brightness adjustment, and heat control. Refer to the remote guide and V2 installation manual for button functions and pairing.
Wireless Wall Touch Control
Add the optional MF-PRO-V2-WTC control for access from a wall location. This accessory is sold separately and must be paired to the fireplace.
Modern Flames WiFi App
Control lighting zones, color patterns, presets, and heater settings from a compatible phone. Use the setup instructions for your platform and the WiFi section of the V2 manual.
iPhone & iOS Setup
Follow the iOS pairing reference for adding the fireplace to the Modern Flames app.
Android Setup
Follow the Android pairing reference for adding the fireplace to the Modern Flames app.
Studio Suites
Studio Suites & Installation Options
Optional suite cabinets provide a furniture-style finish. Order the suite matched to the fireplace size and installation method; suite packages are sold separately.
Wall Mount Studio Suite
The 96" LPM wall mount suite has finished dimensions of 110.5" W x 28" H x 14.5" D. The guide identifies this as a custom size; confirm availability. The guide lists Coastal Sand, Driftwood, Weathered Walnut, and ready-to-finish options.
96" Suite Availability
The wall mount suite guide identifies the 96" suite as a custom size. Confirm current availability before ordering. The supplied recessed-suite guide does not list a 96" model.
Covered Outdoor Installations
Outdoor use requires the manufacturer's specified patio cover, side protection, and clearances. Keep the fireplace away from direct water and direct sunlight. Review the outdoor guide before planning the installation.
