Description

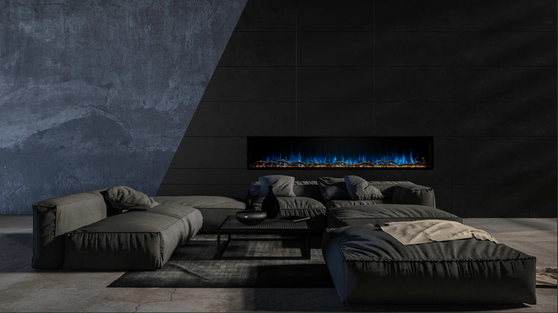

Modern Flames Landscape Pro Slim 80" Electric Fireplace
The Landscape Pro Slim 80" combines independently adjustable LED flames, ember lighting, and downlighting with a shallow, single-sided firebox. A Canyon Driftwood log set and RGB color controls make it a flexible focal point for a media wall or living space.
Three Independent Color Zones
Adjust flame, ember bed, and downlight colors separately. Use the remote color wheel and brightness slider to create coordinated lighting or contrasting accents.
Shallow Firebox
The V2 firebox is 5-3/8" deep. The manual covers a fully recessed installation suited to 2x6 framing and a partially recessed installation suited to 2x4 framing.
5,000 BTU Heating
A 120V ceramic heater provides supplemental warmth. Enjoy the flame and lighting effects independently of the heat.
What's Included
Included Fireplace Features
Fireplace & Finish
- LPS-8014 electric fireplace
- Front glass and trim
- L-metal mounting brackets
- Installation hardware and suction cup
Logs & Lighting
- 12-piece Canyon Driftwood log set
- Smoke acrylic crystals and clear acrylic stones
- Independent RGB flame, ember bed, and downlight zones
- Adjustable flame speed and brightness
Controls & Heating
- Pro Series handheld remote and CR2032 battery
- Built-in manual controls
- WiFi control with the Modern Flames app
- 120V, 5,000 BTU supplemental heater
Optional Accessories
Mesh Screen
A model-matched optional mesh screen offers an alternative front presentation. Sold separately; follow the screen guide for glass removal and screen installation.
Wireless Wall Touch Control
The MF-PRO-V2-WTC wall control is sold separately. Review the guide for mounting and pairing.
Specifications
LPS-8014 Specifications
Dimensions and heater power below follow the July 2025 V2 manual. The original model spec sheet is also linked in Downloads; confirm the appliance version before framing.
[[SPECIFICATIONS]]
| Specification | LPS-8014 |
|---|---|
| Series | Landscape Pro Slim |
| Store Model Number | LPS-8014 |
| Model Listed in Supplied Manual | LPS-8014V2 |
| Heating Capacity | 5,000 BTU |
| Voltage / Heater Power | 120V, 60Hz / 1465W |
| Connection | Hardwired installation; dedicated circuit per manual |
| V2 Appliance Dimensions | 80-1/16" W x 23-3/4" H x 5-3/8" D |
| V2 Viewing Area | 79-5/8" W x 13-5/8" H |
| V2 Fully Recessed Framing | 80-1/4" W x 24-1/8" H x 6" D |
| Included Logs | 12 Canyon Driftwood logs |
| Installation | Single-sided fully or partially recessed installation |
| Outdoor Use | Covered outdoor use only; follow manufacturer protection and clearance requirements |
Downloads
Downloads & Resources
| Document | What It Covers | Download |
|---|---|---|
| Installation Manual | July 2025 V2 dimensions, wiring, installation, and controls. | Open Manual |
| 80" Model Spec Sheet | Original model reference drawing; compare with the V2 manual for your appliance version. | Open Spec Sheet |
| Linear Brochure | Series features and installation overview. | Open Brochure |
| iPhone / iOS WiFi Guide | Platform-specific setup reference. | Open iOS Guide |
| Android WiFi Guide | Platform-specific setup reference. | Open Android Guide |
| Log Set Sizes | Model-specific log layouts. | Open Log Guide |
| Optional Mesh Screen | Screen fitting and installation. | Open Screen Guide |
| Pro Series Remote Guide | Color zones, brightness, heat, and pairing. | Open Remote Guide |
| Wireless Wall Touch Control | Optional wall control installation and pairing. | Open Wall Control Guide |
| Outdoor Requirements | Required cover, protection, and clearances. | Open Outdoor Guide |
| Outdoor Rated Assertion | Rating documentation for listed LPS and LPM models. | Open Rating Document |
Remote
Remote & App Controls
Flame & Color
- Select the flame zone and choose an RGB color
- Adjust brightness with the slider
- Cycle flame and ember bed speeds
- Select static or changing color patterns
Ember Bed & Downlighting
- Select ember bed or downlight zone independently
- Choose zone color and brightness
- Coordinate colors across the fireplace
- Use Home/Reset to restore default colors
Heat & Power
- Power on/off
- High, low, and off heat settings
- Built-in manual controls
- Pair the remote using the V2 manual instructions
Modern Flames WiFi App
iPhone & iOS
Follow the iOS reference and V2 manual to pair the fireplace and adjust lighting and heater settings.
Android
Follow the Android reference and V2 manual to pair the fireplace and adjust lighting and heater settings.
Installation
Installation Planning
Fully Recessed
Use the model-specific V2 framing dimensions for a 2x6 wall installation. Verify the actual appliance and required finish details before closing the wall.
Partially Recessed
The manual also covers a partial recess suited to 2x4 framing. Follow the mounting and finish details for that configuration.
Covered Outdoor Use
Install only under the required patio cover, away from direct sunlight and direct water contact. Follow the specified front and side protection and clearances.
