Modern Flames Spectrum Slimline 50" Electric Fireplace - SPS-50B

$1,599.00
Write a Review
SKU:
SPS-50B
UPC:
859347002983
Weight:
50.00 LBS
Shipping:
Calculated at Checkout
Glass Height
12"
Glass Width
46"
Unit Height
17"
Unit Width
49 3/4"
Unit Depth
4 3/4"
Framing Height
16 1/4"
Framing Width
48 7/8"
Framing Depth
4"

Description

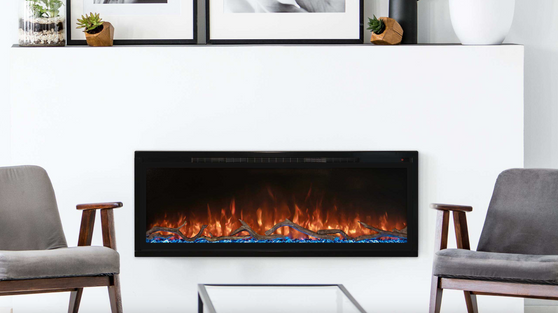

Modern Flames Spectrum Slimline 50" Electric Fireplace

The Spectrum Slimline 50" combines a narrow face, adjustable LED flames, and a Canyon Driftwood log set. Recess it into a framed wall or use the supplied wall mounting system for a surface-mounted installation.

Modern Flames Spectrum Slimline electric fireplace

Flame & Ember Colors

Choose from ten flame colors and ten ember bed colors, with fade options and independent brightness adjustments.

Recessed or Wall Mounted

Choose a recessed installation or mount the fireplace on the wall with its supplied bracket and side skirts. Follow the manual for framing and support requirements.

Supplemental Warmth

A 120V, 5,000 BTU heater provides low and high heat settings. The flame display can be enjoyed without heat.

What's Included

Included Fireplace Features

Fireplace & Mounting

  • SPS-50B electric fireplace
  • Front glass
  • Wall mounting bracket and side skirts
  • Recess mounting brackets and L-shaped bracket

Logs & Media

  • 8-piece Canyon Driftwood log layout per log guide
  • Small glacier crystals
  • Adjustable flame and ember bed lighting
  • Log sets may vary and are subject to change

Controls & Hardware

  • Spectrum Slimline handheld remote
  • Built-in touch controls
  • Power cord and hardwire connection components
  • Installation screws and anchors

Specifications

SPS-50B Specifications

Dimensions follow the supplied owner manual. Verify the appliance and chosen mounting method before finishing the opening.

[[SPECIFICATIONS]]

Specification SPS-50B
Series Spectrum Slimline
Model Number SPS-50B
Heating Capacity 5,000 BTU
Voltage / Heater Power 120V, 60Hz / 1465W
Power Options Plug-in or hardwired connection per manual
Overall Dimensions 49-3/4" W x 17" H x 4-3/4" D
Viewing Area 46" W x 12" H
Finished Recessed Opening 48-7/8" W x 16-1/4" H x 4" minimum D
Log Layout 8 logs per model log guide; sets may vary
Installation Options Recessed or surface wall mounted

Downloads

Downloads & Resources

Document What It Covers Download
Owner Manual Dimensions, recessed and wall mounting, wiring, and operation. Open Manual
50" Model Spec Sheet Model-specific dimension reference. Open Spec Sheet
Linear Brochure Spectrum Slimline series overview. Open Brochure
Log Set Sizes Model-specific log layouts and quantities. Open Log Guide
Spectrum Slimline Remote Guide Remote buttons and thermostat controls. Open Remote Guide

Remote

Spectrum Slimline Remote Controls

Flame Color & Speed

  • Ten flame colors plus a fade mode
  • Three flame speed settings
  • Five flame brightness settings
  • Memory for flame settings

Ember Bed Lighting

  • Ten ember bed colors plus a fade mode
  • Independent ember bed brightness
  • Separate flame and ember bed color choices
  • Included glacier crystals and log set

Heat, Thermostat & Timer

  • Low 733W, high 1465W, or heater off
  • Thermostat temperature selection
  • Timer from 30 minutes to 8 hours
  • Heater and thermostat lockout

Installation

Recessed & Wall Mounted Installation

Recessed Installation

Prepare a finished opening of 48-7/8" W x 16-1/4" H x 4" minimum D. Follow the manual for mounting brackets, electrical routing, and finishing.

Wall Mounted Installation

Use the included wall bracket, side skirts, and retaining bracket. Mount to suitable structural support and follow the model-specific wall bracket dimensions.

Power Connection

Use the supplied cord or a qualified electrician for hardwiring. Follow the dedicated-circuit requirements and keep the supply accessible as specified in the manual.
