Description

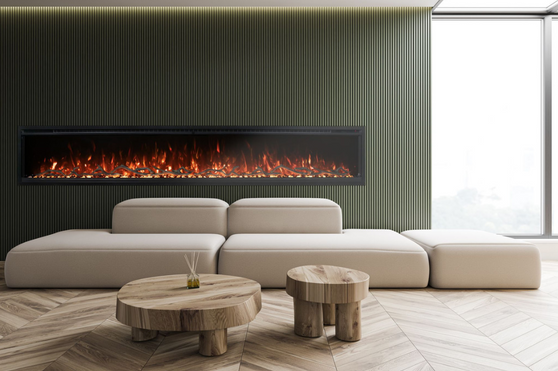

Modern Flames Spectrum Slimline 100" Electric Fireplace
The Spectrum Slimline 100" combines a narrow face, adjustable LED flames, and a Canyon Driftwood log set. Recess it into a framed wall or use the supplied wall mounting system for a surface-mounted installation.
Flame & Ember Colors
Choose from ten flame colors and ten ember bed colors, with fade options and independent brightness adjustments.
Recessed or Wall Mounted
Choose a recessed installation or mount the fireplace on the wall with its supplied bracket and side skirts. Follow the manual for framing and support requirements.
Supplemental Warmth
A 120V, 5,000 BTU heater provides low and high heat settings. The flame display can be enjoyed without heat.
What's Included
Included Fireplace Features
Fireplace & Mounting
- SPS-100B electric fireplace
- Front glass
- Wall mounting bracket and side skirts
- Recess mounting brackets and L-shaped bracket
Logs & Media
- 16-piece Canyon Driftwood log layout per log guide
- Small glacier crystals
- Adjustable flame and ember bed lighting
- Log sets may vary and are subject to change
Controls & Hardware
- Spectrum Slimline handheld remote
- Built-in touch controls
- Power cord and hardwire connection components
- Installation screws and anchors
Specifications
SPS-100B Specifications
Dimensions follow the supplied owner manual. Verify the appliance and chosen mounting method before finishing the opening.
[[SPECIFICATIONS]]
| Specification | SPS-100B |
|---|---|
| Series | Spectrum Slimline |
| Model Number | SPS-100B |
| Heating Capacity | 5,000 BTU |
| Voltage / Heater Power | 120V, 60Hz / 1465W |
| Power Options | Plug-in or hardwired connection per manual |
| Overall Dimensions | 99-3/4" W x 17" H x 4-3/4" D |
| Viewing Area | 95-7/8" W x 12" H |
| Finished Recessed Opening | 98-7/8" W x 16-1/4" H x 4" minimum D |
| Log Layout | 16 logs per model log guide; sets may vary |
| Installation Options | Recessed or surface wall mounted |
Downloads
Downloads & Resources
| Document | What It Covers | Download |
|---|---|---|
| Owner Manual | Dimensions, recessed and wall mounting, wiring, and operation. | Open Manual |
| 100" Model Spec Sheet | Model-specific dimension reference. | Open Spec Sheet |
| Linear Brochure | Spectrum Slimline series overview. | Open Brochure |
| Log Set Sizes | Model-specific log layouts and quantities. | Open Log Guide |
| Spectrum Slimline Remote Guide | Remote buttons and thermostat controls. | Open Remote Guide |
Remote
Spectrum Slimline Remote Controls
Flame Color & Speed
- Ten flame colors plus a fade mode
- Three flame speed settings
- Five flame brightness settings
- Memory for flame settings
Ember Bed Lighting
- Ten ember bed colors plus a fade mode
- Independent ember bed brightness
- Separate flame and ember bed color choices
- Included glacier crystals and log set
Heat, Thermostat & Timer
- Low 733W, high 1465W, or heater off
- Thermostat temperature selection
- Timer from 30 minutes to 8 hours
- Heater and thermostat lockout
Installation
Recessed & Wall Mounted Installation
Recessed Installation
Prepare a finished opening of 98-7/8" W x 16-1/4" H x 4" minimum D. Follow the manual for mounting brackets, electrical routing, and finishing.
Wall Mounted Installation
Use the included wall bracket, side skirts, and retaining bracket. Mount to suitable structural support and follow the model-specific wall bracket dimensions.
Power Connection
Use the supplied cord or a qualified electrician for hardwiring. Follow the dedicated-circuit requirements and keep the supply accessible as specified in the manual.
