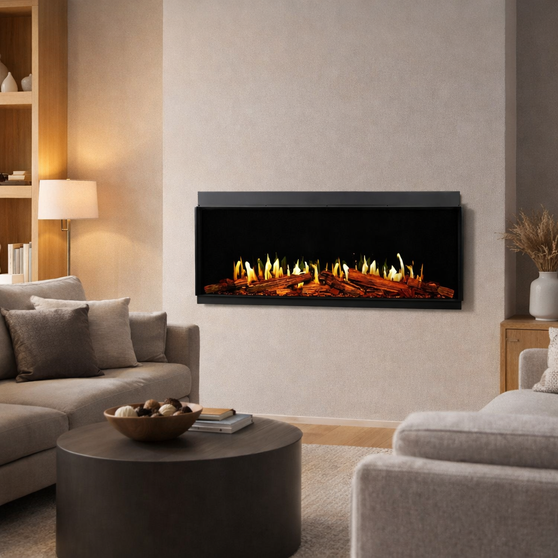

Modern Flames Orion® V2 Multi 52" Virtual Electric Fireplace
The Orion V2 Multi 52" is a versatile linear electric fireplace sized for feature walls, media rooms, bedrooms, and wall-mounted installations where a premium multi-sided flame presentation is desired. Orion V2 combines virtual LCD flame technology, a full lit log set, layered lighting, active ember effects, premium audio, and smart app control into one immersive electric fireplace platform.
Immersive Flame Technology
Orion V2 uses next-generation virtual LCD flame technology with 24 flame options available out of the box. Multi-dimensional flame styles, richer colors, deeper blacks, and adaptive brightness help create a more realistic fire presentation throughout the day.
Built for Flexible Installs
The Multi series can be configured for single-sided, left corner, right corner, bay/three-sided, clean-face, or wall-mounted applications. It is designed for new builds, remodels, and feature-wall projects.
Heat, Sound & Smart Control
Advanced PTC ceramic heating delivers 5,000 to 10,000 BTU performance. Built-in speakers, Bluetooth audio streaming, ambient crackling sounds, remote control, and the Modern Flames+ app create a complete fireplace experience.
Key Highlights
24 Flame Options
Includes flagship multi-dimensional flame styles plus additional flame colors, legacy looks, and theme-style experiences that can evolve through the Modern Flames+ app.
Premium Sound
Custom Modern Flames speakers support immersive crackling fire sounds and Bluetooth audio streaming for music, podcasts, or ambient soundscapes.
Lit Logs & Ember Bed
The Multi series includes a realistic lit log set, active glowing ember bed, and downlighting to add depth and movement to the hearth.
Modern Flames+ App
The Modern Flames+ app allows additional flame styles and video experiences to be downloaded directly to the fireplace. The fireplace can store up to six app-delivered experiences at a time, allowing the look to adapt as new content becomes available.
What's Included
Included Fireplace Features
The Orion V2 Multi is designed as a complete premium electric fireplace platform with flame, heat, lighting, sound, and control features built in.
Fireplace & Flame System
- Orion V2 Multi 52" electric fireplace
- Next-generation virtual LCD flame technology
- 24 flame options available out of the box
- Three flagship multi-dimensional flame styles
- Adaptive flame brightness
Media, Lighting & Audio
- Highly realistic lit log set
- Active glowing ember bed
- Multi-color adjustable flame effects
- Multi-color ember bed and downlighting
- Built-in speakers with Bluetooth audio streaming
- Three ambient crackling sound options
Controls & Installation
- Premium Orion remote control
- WiFi/app control through Modern Flames+
- Built-in touch controls
- Hardwire-ready dual-voltage power design
- Flexible built-in or wall-mounted installation options
Optional Accessories

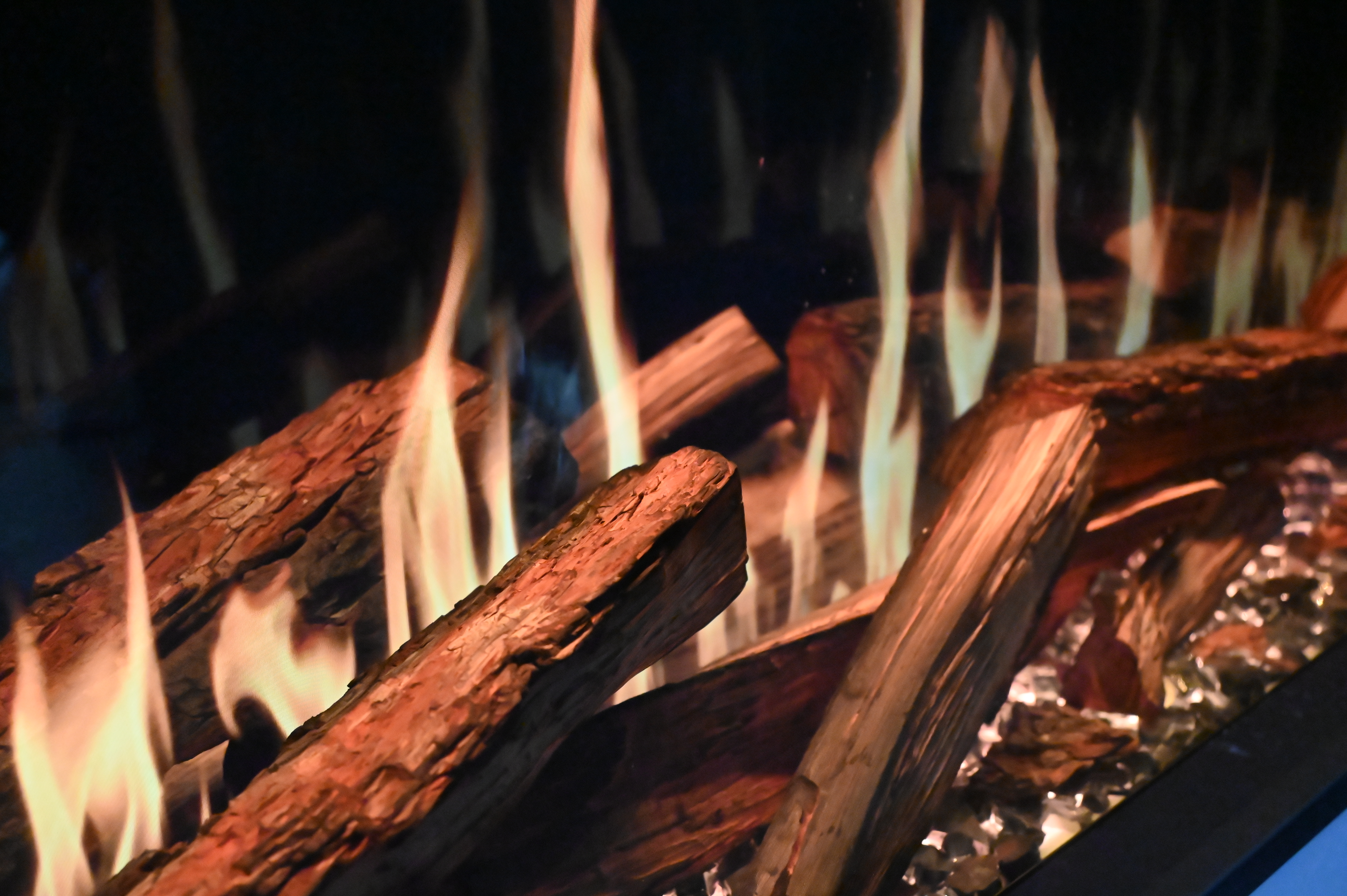

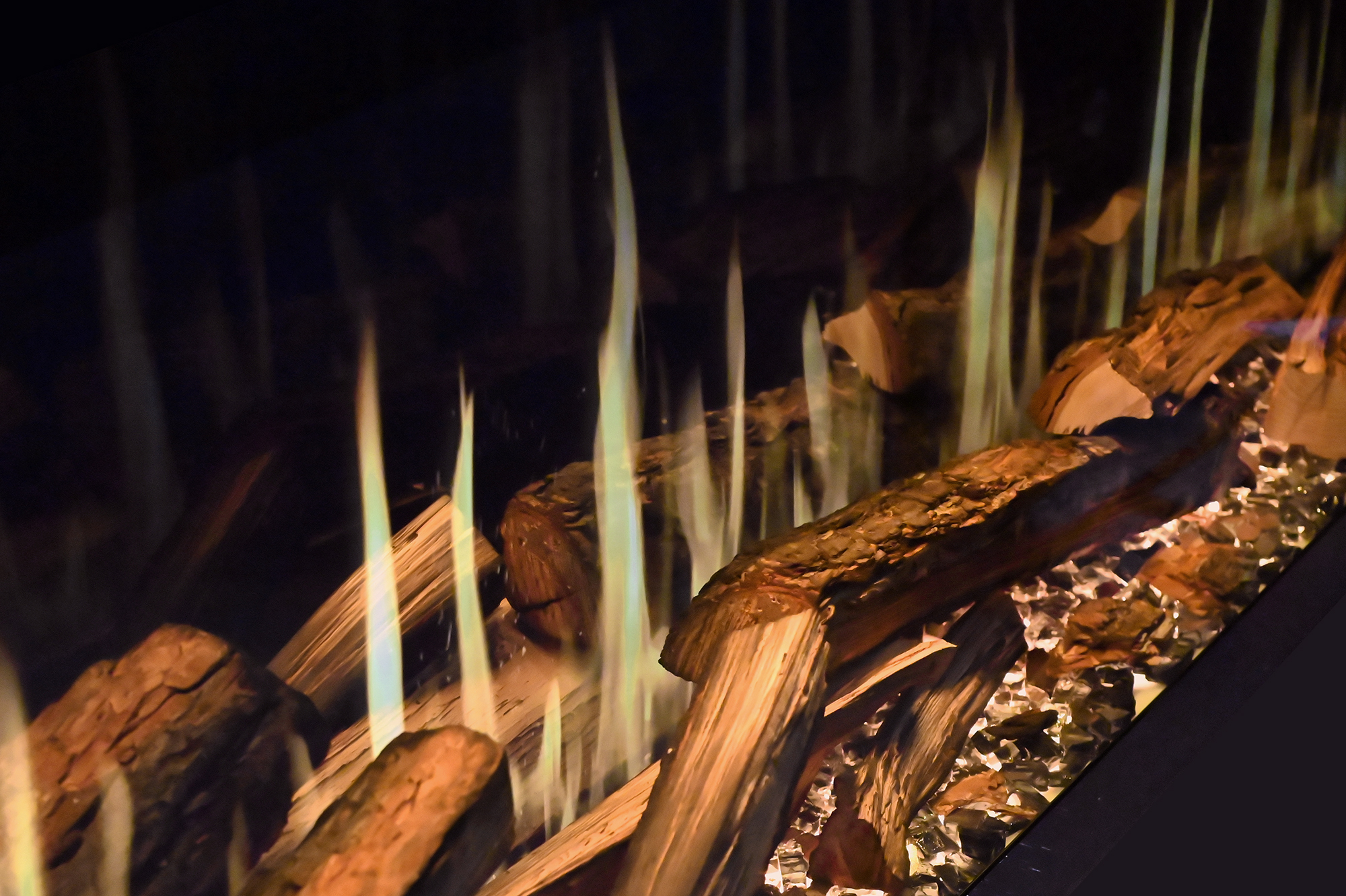

TruWood™ Premium Timber upgrade kits are sold separately where applicable. For an upgraded log appearance, the optional TruWood kit adds taller, more dimensional wood visuals for compatible Orion Multi and Slim fireplaces. For this 52" model, use the TWL-52/60-SP installation guide listed in Downloads.
Specifications
OR52-MULTI-V2 Specifications
Use this section for quick product planning.
| Specification | OR52-MULTI-V2 |
|---|---|
| Series | Orion V2 Multi |
| Model Number | OR52-MULTI-V2 |
| Heating Capacity | 5,000-10,000 BTU, approximately 400-800 sq. ft. |
| Voltage / Power | 120V / 240V dual voltage, hardwire ready |
| Appliance Dimensions | 51-1/2" W x 24-1/16" H x 9-7/16" D |
| Rough Opening - Three-Sided/Bay | 50-5/8" W x 23-7/8" H x 8-13/16" D |
| Viewing Area | 50-1/8" W x 18-7/16" H |
| Fully Recessed Framing | Refer to the OR52-MULTI-V2 spec diagram for finished framing requirements |
| Install Options | Single-sided built-in, left/right corner built-in, three-sided/bay built-in, and wall-mounted applications |
[[SPECIFICATIONS]]
Downloads
Downloads & Resources
Use the links below for installation planning, product literature, remote operation, optional TruWood accessory information, and Studio Suites mantel package resources.
| Document | What It Covers | Download |
|---|---|---|
| Installation Manual - Orion V2 Multi | Owner and installation manual for Orion V2 Multi fireplaces. | Open Manual |
| Orion V2 Catalog / Brochure | Series overview, features, installation options, model lineup, and dimensions. | Open Brochure |
| Orion Advanced Features Sheet | Feature summary including HelioVision viewing area, flame technology, heater, sound, lighting, remote, and WiFi control. | Open Features |
| Orion Remote Guide | Remote-control button map for flame styles, sound, speed, downlight, ember bed, timer, and heat. | Open Remote Guide |
| OR52-MULTI-V2 Spec Diagram | 52" model dimensional drawing and technical reference. | Open Spec Diagram |
| TruWood 52/60 Installation Guide | Installation guide for the optional TruWood Premium Timber kit used with 52" and 60" compatible fireplaces. | Open TruWood Guide |
| Orion Multi Studio Suites Installation Manual | Installation guide for wall mounted Studio Suite displays for Orion Multi fireplaces. | Open Manual |
| Studio Suites Product Page | Manufacturer page for Studio Suites mantel package details and resources. | Open Product Page |
Remote
Remote & App Controls
Control the Orion V2 Multi with the included handheld remote or through the Modern Flames app for expanded flame, lighting, heater, timer, and scheduling options.
Flame & Speed
- Power on/off
- Home button resets all zones to default
- Cycle between three flame styles while maintaining the current flame color
- Increase or decrease flame speed for the current style
Lighting & Ember Bed
- Switch between 10 RGB downlight colors plus auto cycle
- Adjust downlight brightness
- Switch between 10 RGB ember bed colors plus auto cycle
- Adjust ember bed brightness
Heat, Timer & Sound
- Sound control with four levels
- Timer control from no timer up to 8 hours
- Heat cycles through off, fan, low, and high
- Preset controls for fast scene adjustments
Handheld Remote
The premium remote gives direct control over power, flame styles, lighting, sound, timer, and heat functions.
Handheld Remote Features
- Power, home, and preset controls for fast scene changes
- Flame style and flame speed adjustments
- Downlight and ember bed color controls
- Sound, timer, and heat level control
Bluetooth & WiFi App Controls
The Modern Flames app adds phone-based control for flame style, flame color, ember bed, heater, timer, and weekly scheduling.

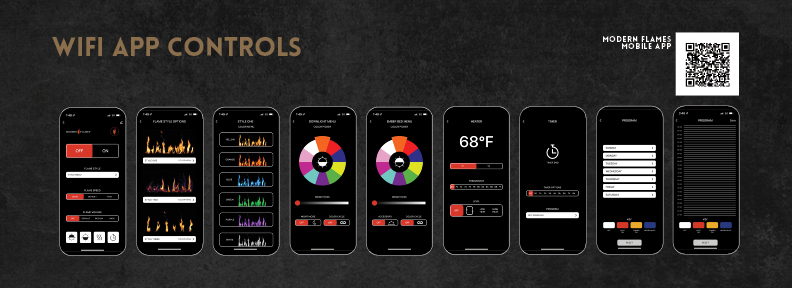

Orion App Control Overview

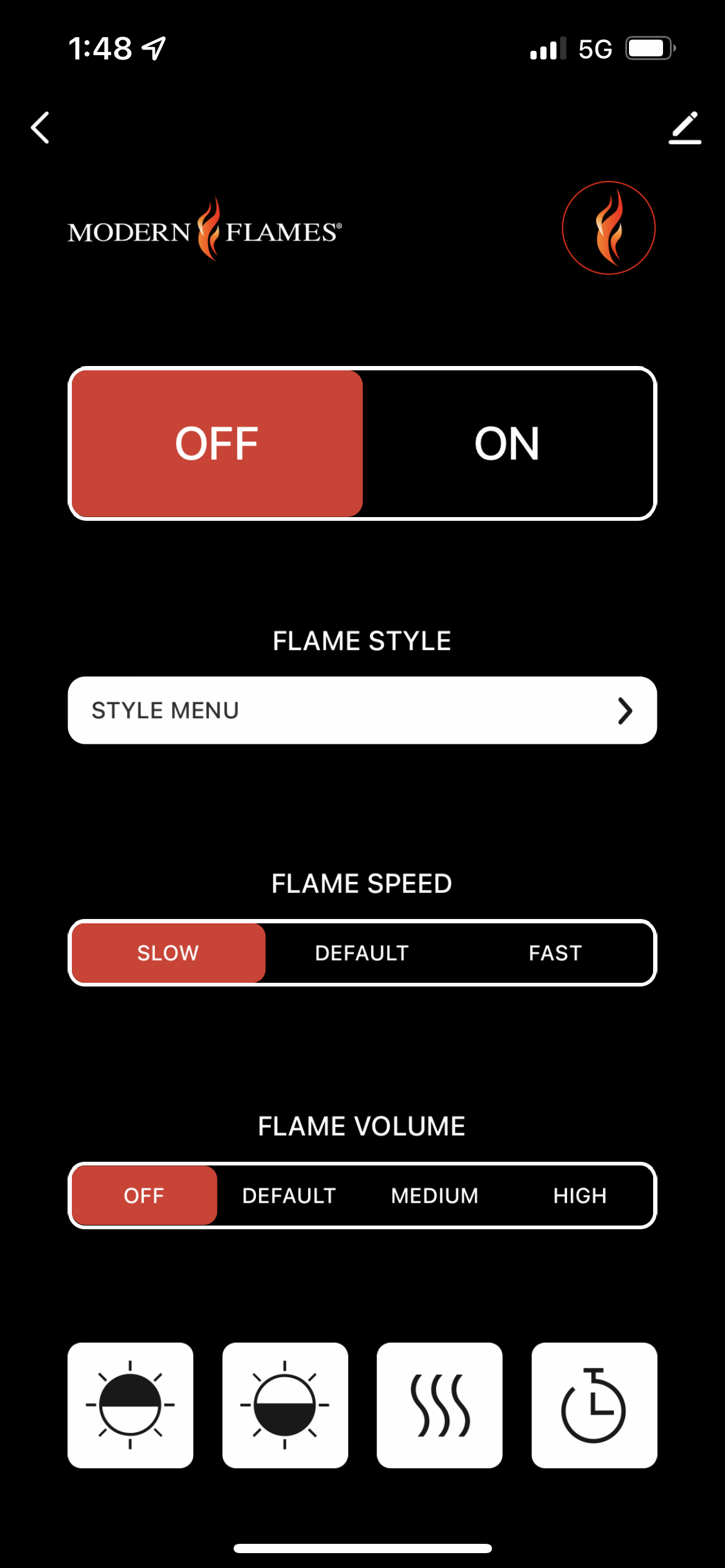

Main Controls
Quick access to power, flame style, flame speed, flame volume, brightness, heater, and timer controls.

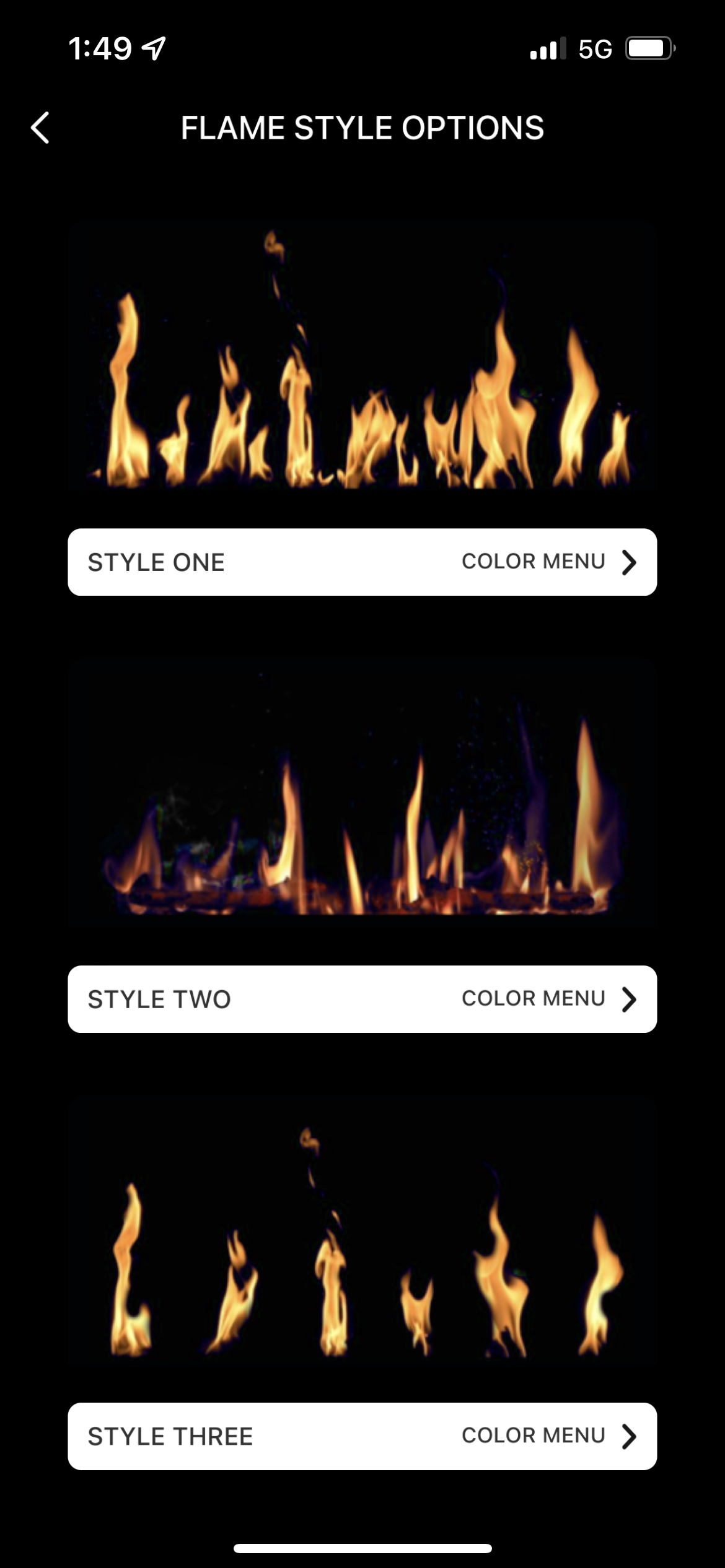

Flame Style Options
Select between available flame styles and open the color menu for each flame presentation.

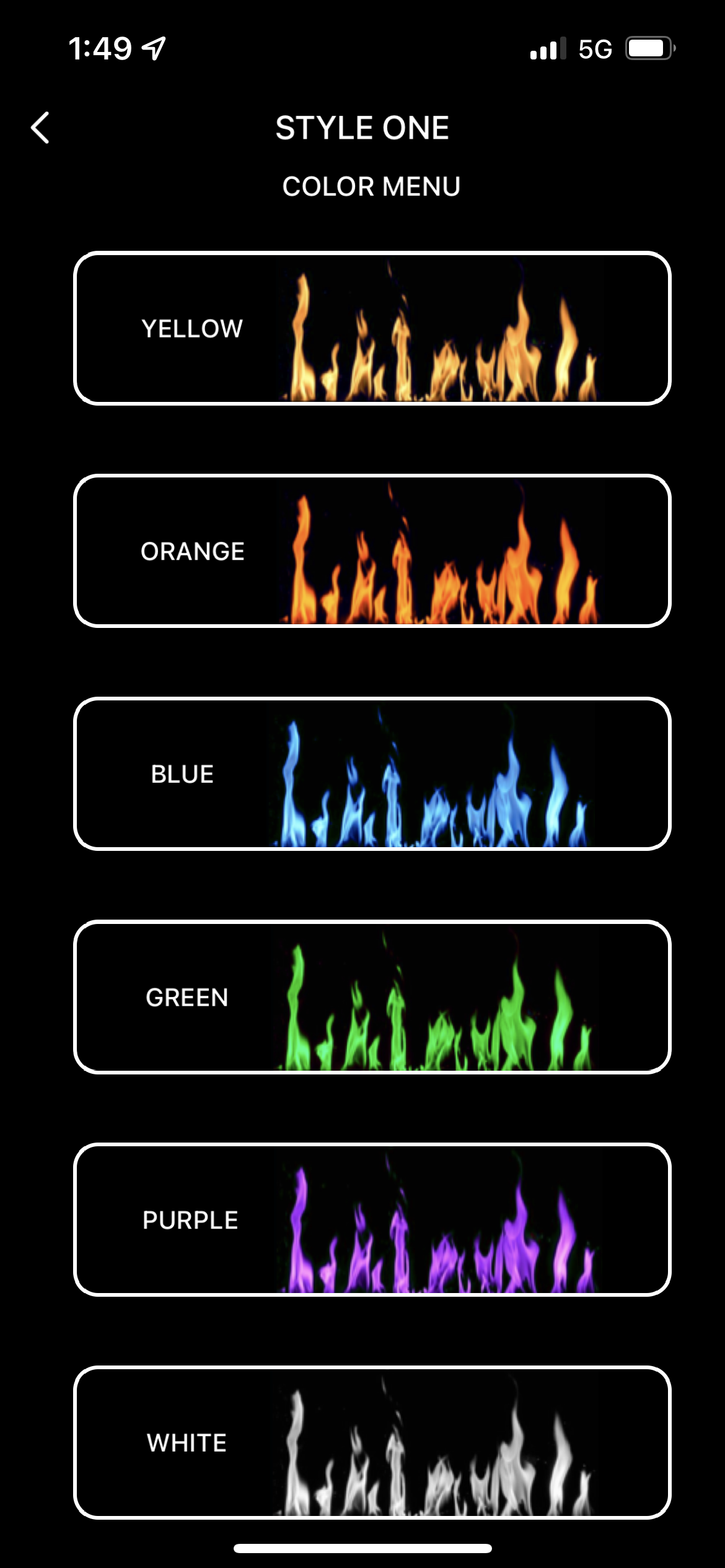

Flame Color Menu
Choose flame colors including yellow, orange, blue, green, purple, and white.

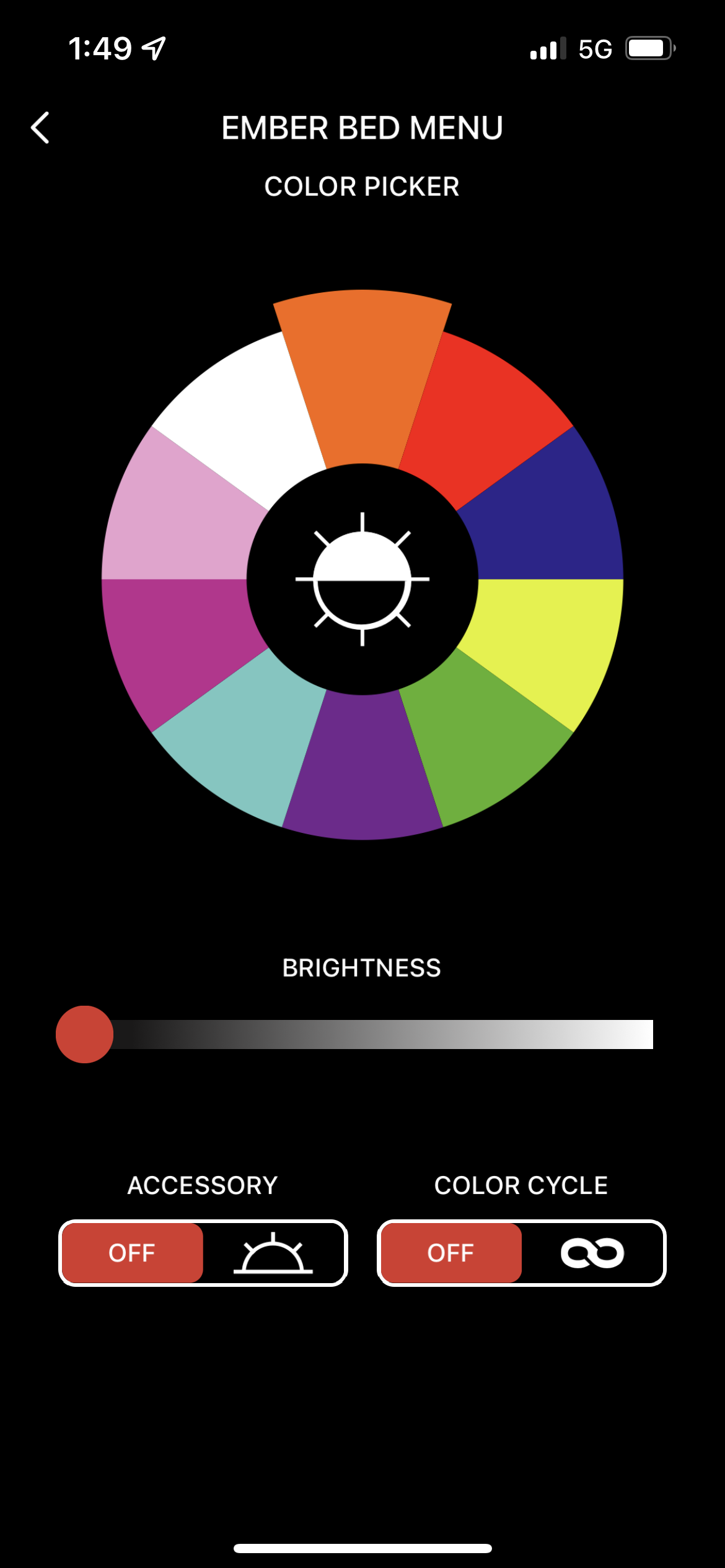

Ember Bed Color
Adjust ember bed color, brightness, accessory lighting, and color cycle settings.

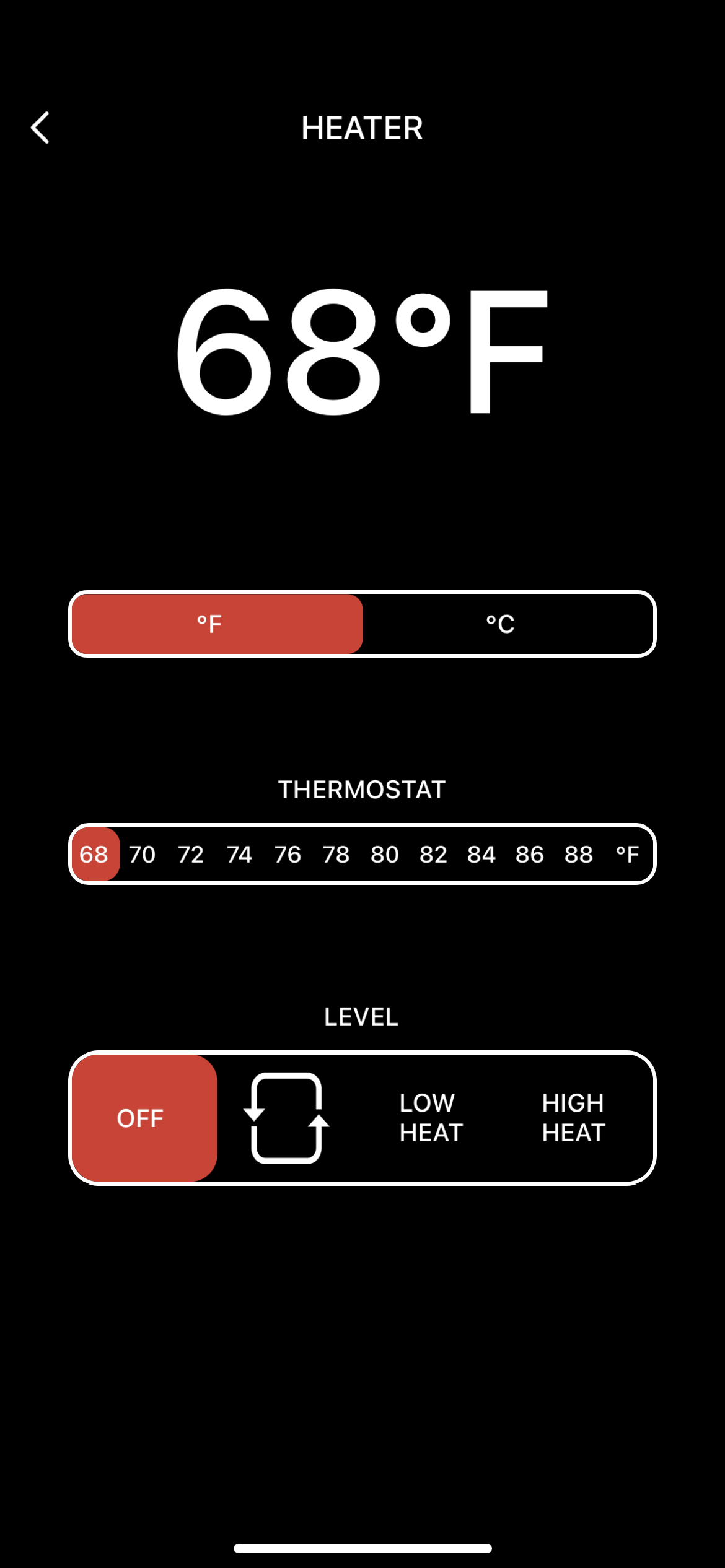

Heater Controls
Set temperature units, thermostat target, and heater output level from the app.

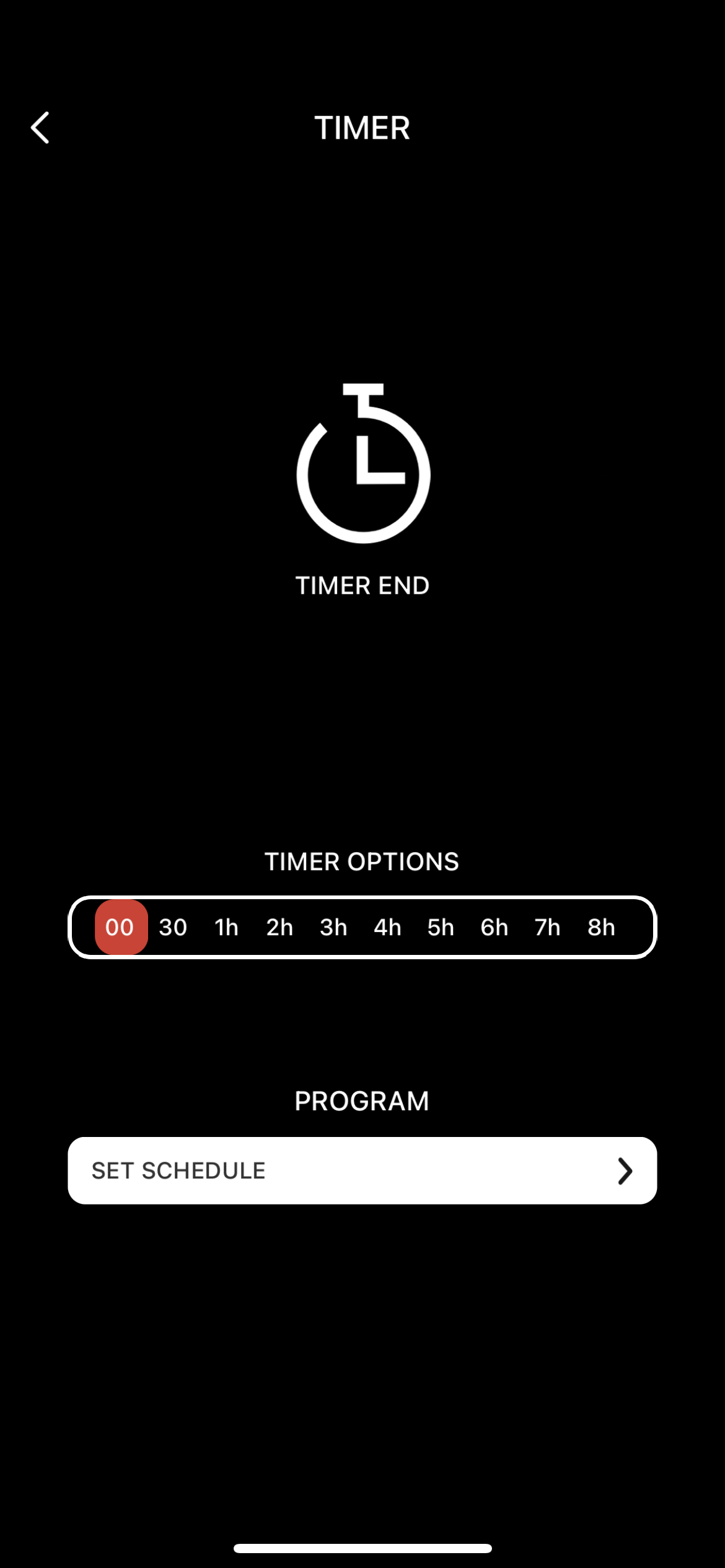

Timer Controls
Set the sleep timer from no timer up to 8 hours, or open weekly scheduling.

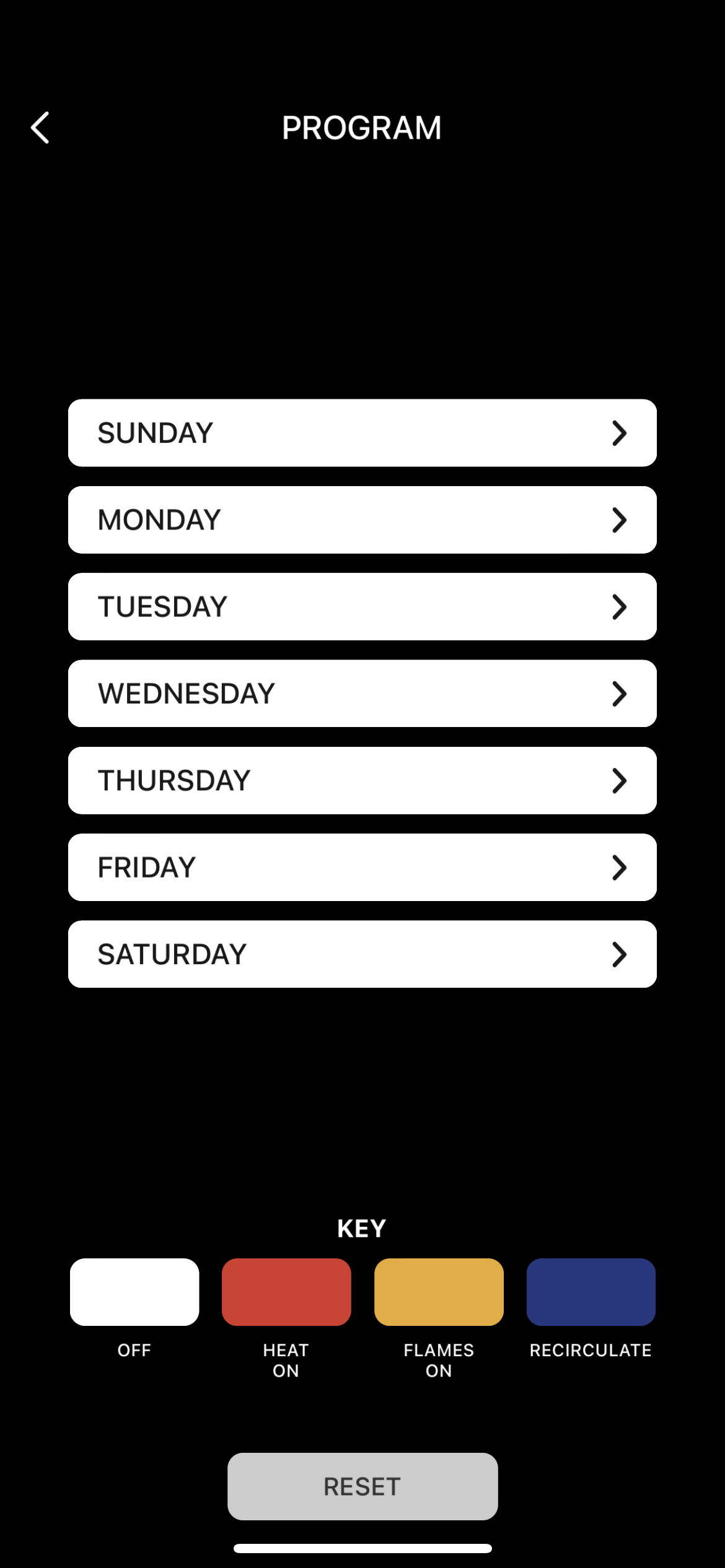

Weekly Program
Create weekly schedules by day with visual status colors for off, heat, flame, and recirculate modes.
Studio Suites
Studio Suites Mantel Package

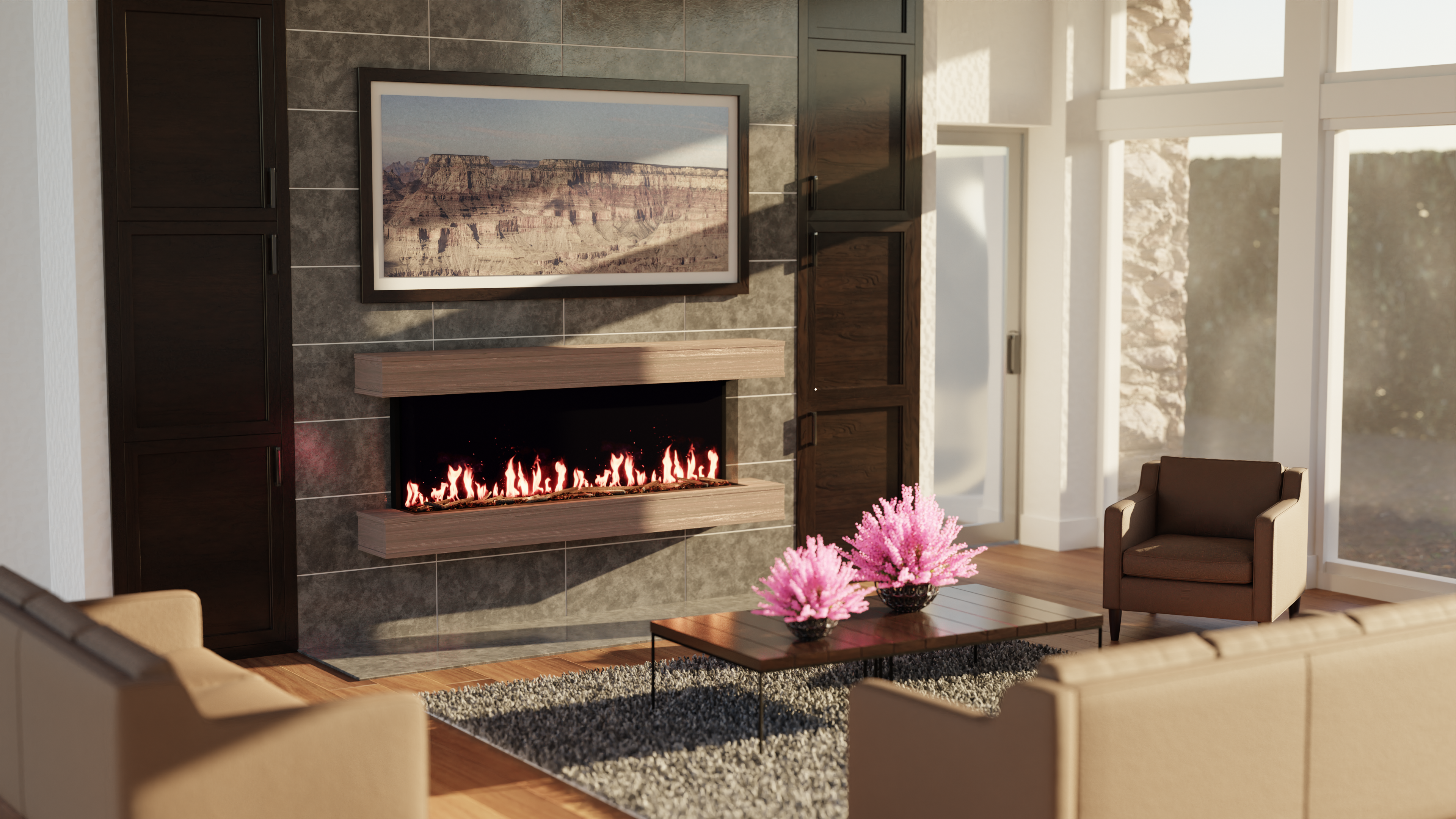

The Studio Suites mantel package is designed for wall mount Orion Multi applications and gives the 52" fireplace a finished furniture-style top and bottom surround.
Wall Mount Suite
Studio Suites are made for Orion Multi and Landscape Pro Multi wall mount installations. After the fireplace is attached to the wall, the top and bottom suite pieces install with mounting brackets to finish the fireplace presentation.

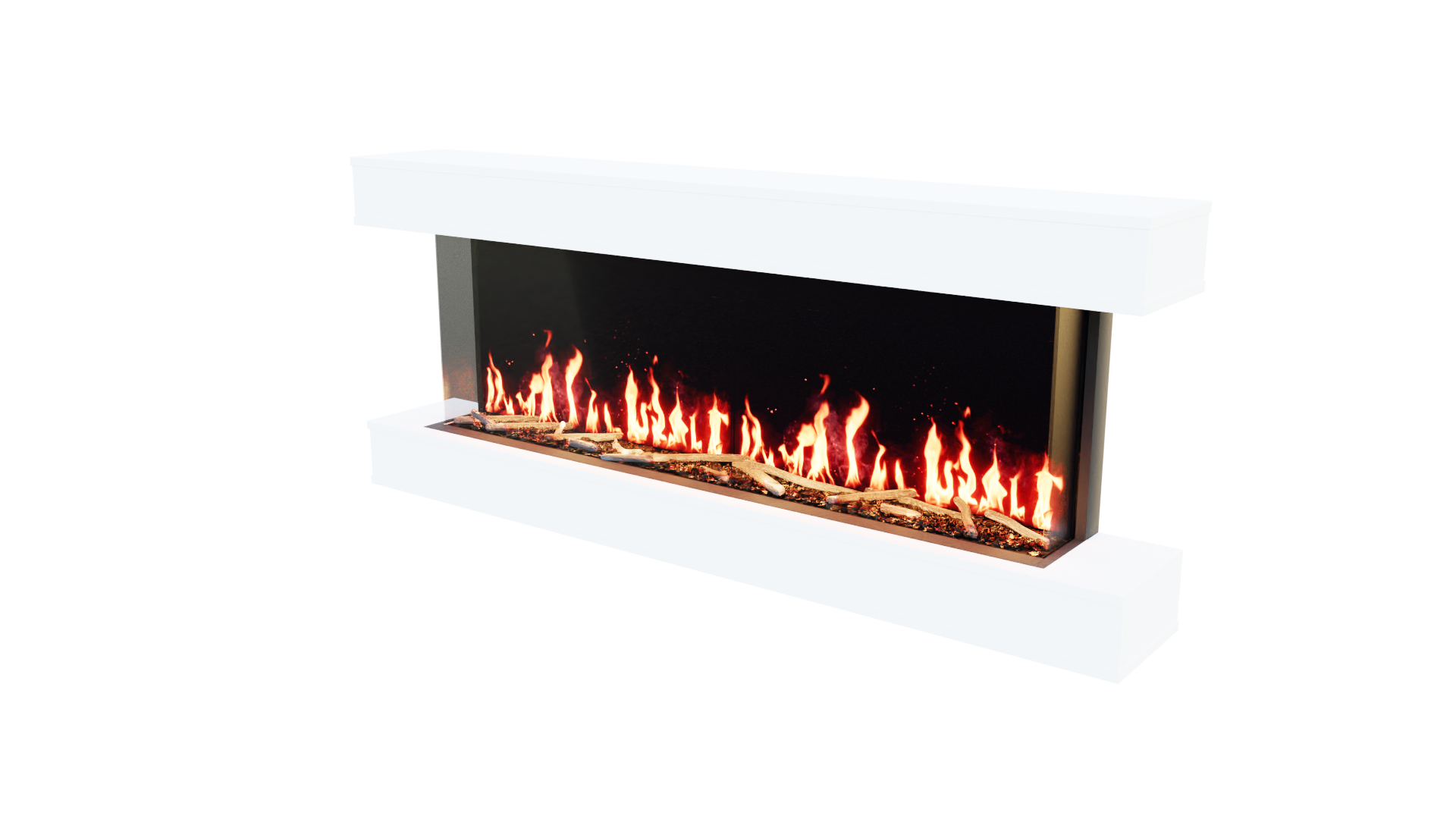

White Paint Grade
Ready-to-finish white paint grade option for projects where the mantel pieces will be painted to match the room.
Weathered Walnut
Warm wood-look finish for a finished furniture-style surround with more natural contrast.

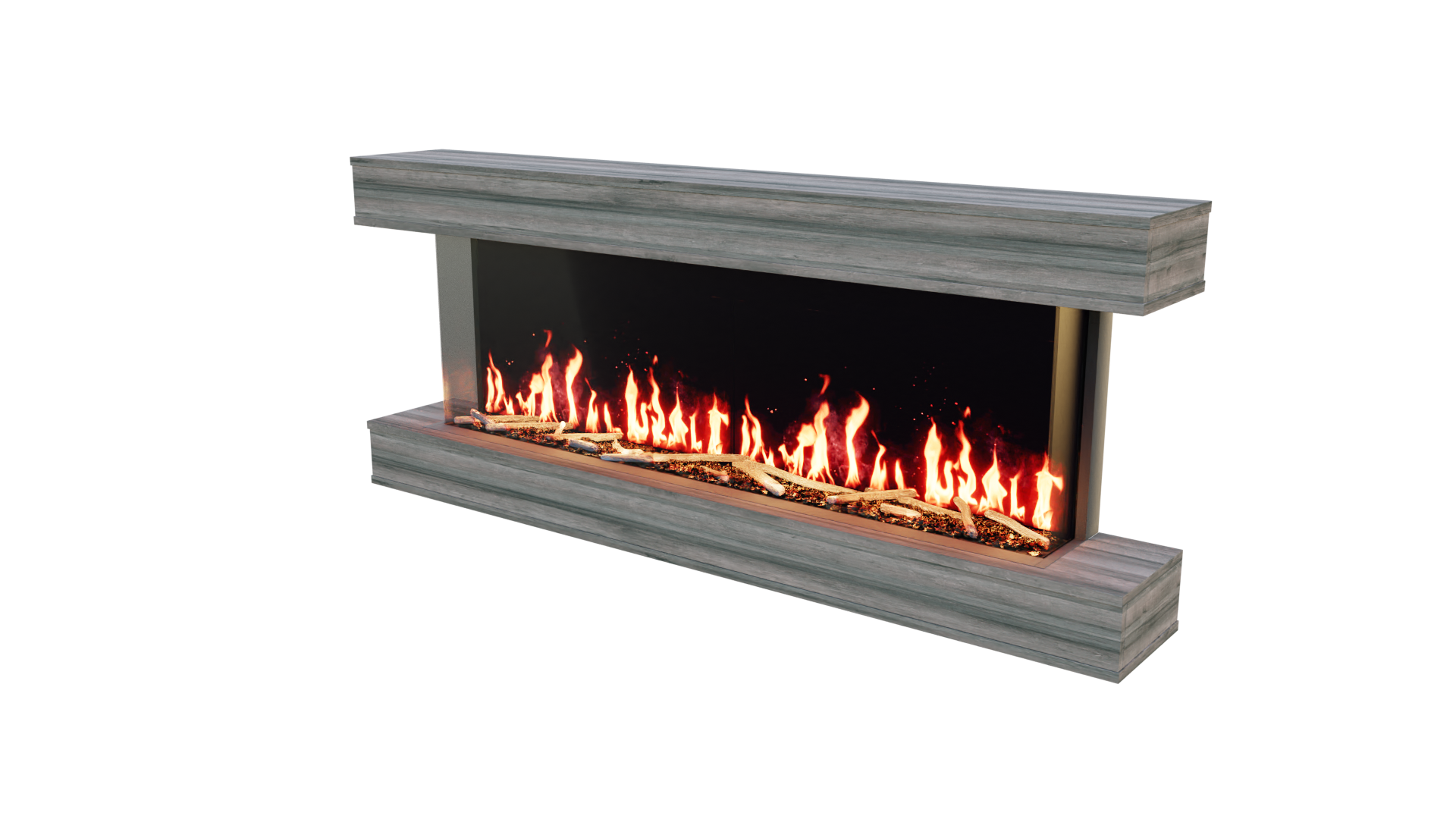

Driftwood Gray
Cool gray wood-look finish for modern rooms, tile walls, and lighter contemporary palettes.

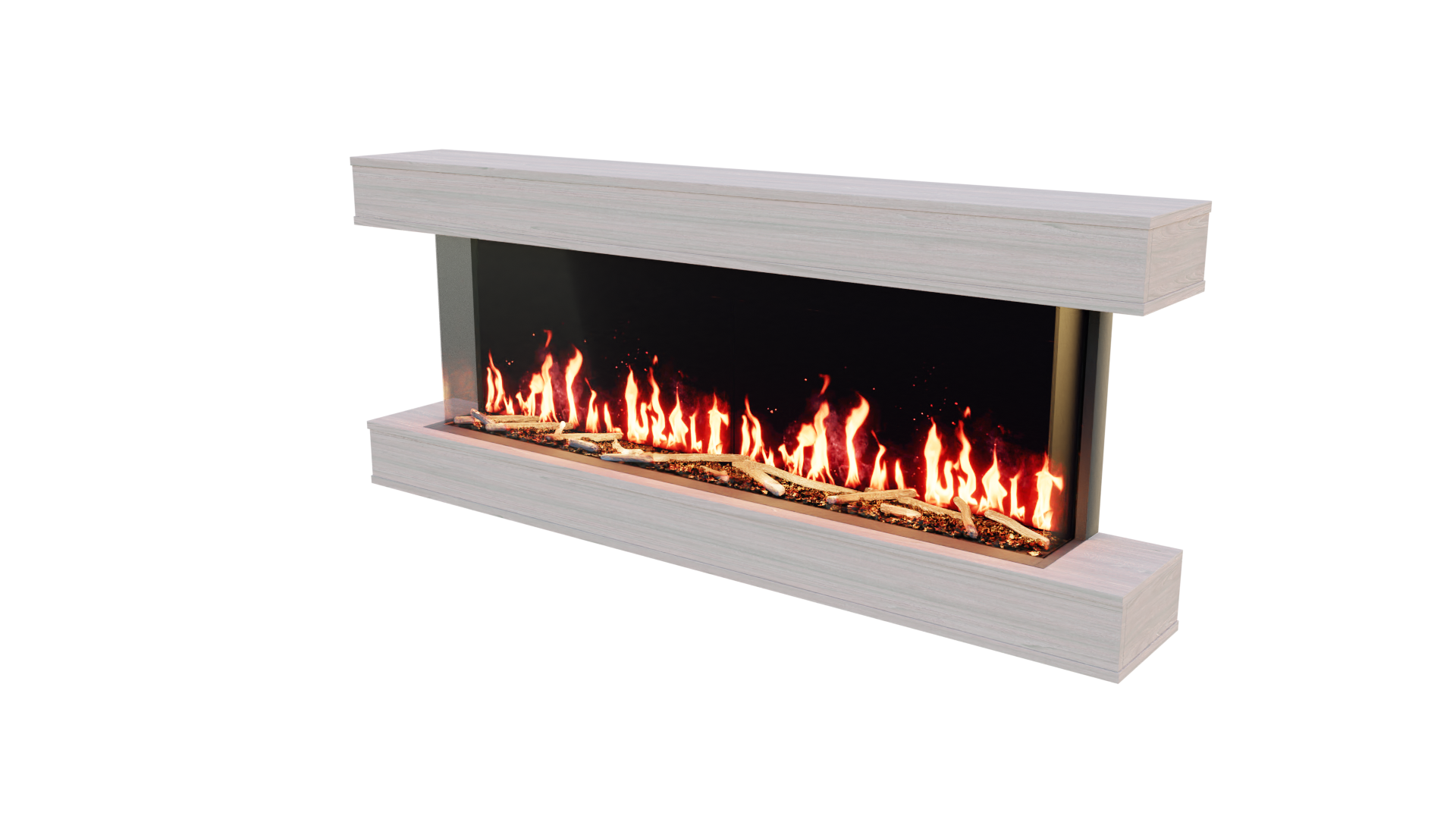

Coastal Sand
Light neutral wood-look finish for bright rooms and softer design schemes.
Finish Swatches
Constructed with solid hardwoods and thermally fused laminate, Studio Suites are available in Weathered Walnut, Driftwood Gray, Coastal Sand, and white paint grade for custom DIY finishing.

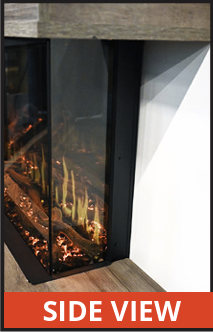

Side View & Size
The Orion Multi 52" wall mounted Studio Suite finished dimensions are 64.5" W x 30.5" H x 11.25" D. Always confirm the installation location, electrical routing, and wall support before ordering.
Installation Planning
Studio Suites are intended for wall mount applications. The installation guide covers fireplace preparation, wall bracket placement, electrical access, suite brackets, and installing the top and bottom furniture pieces.
Videos
Orion V2 Product Videos
Use these videos to preview the Orion V2 flame presentation and app-based control experience.
Orion V2 Dimensional Flames
See the Orion V2 multi-dimensional flame presentation and visual depth in action.
Orion WiFi Mobile App Features
Review the Orion app controls for flame style, color, heat, timer, and scheduling features.
