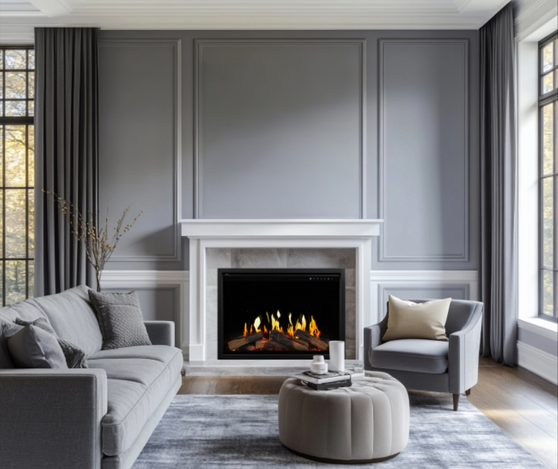

Modern Flames Orion Traditional V2 36" LCD Electric Fireplace - OR36-TRAD-V2

$3,499.00
Write a Review
SKU:
OR36-TRAD-V2
Weight:
200.00 LBS
Shipping:
Free Shipping
Glass Height
22 3/16"
Glass Width
32 1/8"
Unit Height
24 13/16"
Unit Width
35"
Unit Depth
9 7/8"
Framing Height
23 7/8"
Framing Width
32 5/8"
Framing Depth
10"
Surrounds (for existing fireplace openings)

Description

Modern Flames Orion® V2 Traditional 36" Virtual Electric Fireplace

The Orion V2 Traditional 36" is a single-sided electric fireplace designed for built-in clean-face, self-trimming, and retrofit installations in existing fireplace openings. Orion V2 combines virtual LCD flame technology, a realistic lit log set, layered lighting, active ember effects, premium audio, and smart app control into one immersive electric fireplace platform.

Immersive Flame Technology

Orion V2 uses next-generation virtual LCD flame technology with 24 flame options available out of the box. Multi-dimensional flame styles, richer colors, deeper blacks, and adaptive brightness help create a more realistic fire presentation throughout the day.

Built for Flexible Installs

The Traditional series offers built-in clean-face, self-trimming, and retrofit insert installation options. Bring virtual flames to a new feature wall or update an existing fireplace opening.

Heat, Sound & Smart Control

PTC ceramic heating provides 5,000 BTU at 120V or up to 8,500 BTU at 240V. Built-in speakers, Bluetooth audio streaming, ambient crackling sounds, remote control, and the Modern Flames+ app create a complete fireplace experience.

Key Highlights

24 Flame Options

Includes flagship multi-dimensional flame styles plus additional flame colors, legacy looks, and theme-style experiences that can evolve through the Modern Flames+ app.

Premium Sound

Custom Modern Flames speakers support immersive crackling fire sounds and Bluetooth audio streaming for music, podcasts, or ambient soundscapes.

Lit Logs & Ember Bed

The Traditional series includes a realistic lit log set, active glowing ember bed, and downlighting to add depth and movement to the hearth.

Modern Flames+ App

The Modern Flames+ app allows additional flame styles and video experiences to be downloaded directly to the fireplace. The fireplace can store up to six app-delivered experiences at a time, allowing the look to adapt as new content becomes available.

What's Included

Included Fireplace Features

The Orion V2 Traditional is designed as a complete premium electric fireplace platform with flame, heat, lighting, sound, and control features built in.

Fireplace & Flame System

  • Orion V2 Traditional 36" electric fireplace
  • Next-generation virtual LCD flame technology
  • 24 flame options available out of the box
  • Three flagship multi-dimensional flame styles
  • Adaptive flame brightness

Media, Lighting & Audio

  • Highly realistic lit log set
  • Active glowing ember bed
  • Multi-color adjustable flame effects
  • Multi-color ember bed and downlighting
  • Built-in speakers with Bluetooth audio streaming
  • Three ambient crackling sound options

Controls & Installation

  • Premium Orion remote control
  • WiFi/app control through Modern Flames+
  • Built-in touch controls
  • 120V / 240V dual voltage; 120V plug included, hardwire ready
  • Built-in clean-face, self-trimming, or retrofit insert installation options
  • Built-in trim kit

Optional Accessories

TruWood™ Premium Timber upgrade kits are sold separately where applicable. The optional TruWood kit adds natural wood detail to the fireplace presentation. For this 36" Traditional model, refer to the TWL-36-SP installation guide listed in Downloads and confirm V2 compatibility before ordering.

Close-up of TruWood flame and premium timber detail TruWood close-up with flame and ember bed detail

Small Surround - OTK-OR36-SM

The optional 4" extra-wide black surround helps cover the edges of an existing fireplace opening. Sold separately; includes a second bottom piece for different hearth clearances.

Large Surround - OTK-OR36-LG

The optional 6" extra-wide black surround provides additional coverage around an existing fireplace opening. Sold separately. Review the surround dimensions in the installation manual before ordering.

Specifications

OR36-TRAD-V2 Specifications

Review appliance, viewing, and opening dimensions for your installation. Allow the required clearances and use the Traditional installation manual for complete framing details.

[[SPECIFICATIONS]]

Specification OR36-TRAD-V2
Series Orion V2 Traditional
Model Number OR36-TRAD-V2
Heating Capacity 5,000 BTU at 120V / up to 8,500 BTU at 240V
Voltage / Power 120V / 240V dual voltage; 120V plug included, hardwire ready
Appliance Dimensions 35" W x 24-13/16" H x 9-7/8" D
Finished Opening - Self-Trimming / Insert 32-5/8" W x 23-7/8" H x 10" minimum D
Viewing Area 32-1/8" W x 22-3/16" H
Rough Opening - Built-In Clean Face 32-5/8" W x 23-7/8" H x 10-1/2" minimum D
Install Options Single-sided built-in clean face, self-trimming/slide-in, or retrofit insert

Downloads

Downloads & Resources

Use the links below for installation planning, product literature, remote operation, and optional TruWood accessory information.

Document What It Covers Download
Installation Manual - Orion V2 Traditional Owner and installation manual for Orion V2 Traditional fireplaces. Open Manual
Orion V2 Catalog / Brochure Series overview, features, installation options, model lineup, and dimensions. Open Brochure
Orion Remote Guide V2 remote button map and instructions for flame style, lighting, sound, thermostat, and heat; see manual pages 23-27. Open Remote Guide
OR36-TRAD-V2 Spec Diagram 36" model dimensional drawing and technical reference. Open Spec Diagram
TruWood 36 Installation Guide Installation instructions for the optional TWL-36-SP timber kit. Confirm V2 compatibility before ordering. Open TruWood Guide

Remote

Remote & App Controls

Control the Orion V2 Traditional with the included handheld remote or through the Modern Flames app for expanded flame, lighting, heater, timer, and scheduling options.

Flame & Speed

  • Power on/off
  • Home button resets all zones to default
  • Cycle between four flame styles, including the custom style, and adjust flame color
  • Increase or decrease flame speed for the current style

Lighting & Ember Bed

  • Switch between 10 RGB downlight colors plus auto cycle
  • Adjust downlight brightness
  • Switch between 10 RGB ember bed colors plus auto cycle
  • Adjust ember bed brightness

Heat & Sound

  • Sound control with four levels
  • Choose Normal, Starry Night, Stormy Night, or Bluetooth sound modes
  • Heat cycles through off, fan, low, and high
  • Preset controls for fast scene adjustments

Handheld Remote

Modern Flames Orion V2 handheld remote control

The premium remote gives direct control over power, flame styles, lighting, sound, and heat functions.

Handheld Remote Features

  • Power, home, and preset controls for fast scene changes
  • Flame style and flame speed adjustments
  • Downlight and ember bed color controls
  • Sound mode, volume, thermostat, and heat level control

Bluetooth & WiFi App Controls

The Modern Flames app adds phone-based control for flame style, flame color, ember bed, heater, timer, and weekly scheduling.

Orion App Control Overview

Orion WiFi app controls overview

Main Controls

App main control screen

Quick access to power, flame style, flame speed, flame volume, brightness, heater, and timer controls.

Flame Style Options

App flame style options

Select between available flame styles and open the color menu for each flame presentation.

Flame Color Menu

App flame color menu

Choose flame colors including yellow, orange, blue, green, purple, and white.

Ember Bed Color

App ember bed color picker

Adjust ember bed color, brightness, accessory lighting, and color cycle settings.

Heater Controls

App heater controls

Set temperature units, thermostat target, and heater output level from the app.

Timer Controls

App timer controls

Set the sleep timer from no timer up to 8 hours, or open weekly scheduling.

Weekly Program

App weekly program menu

Create weekly schedules by day with visual status colors for off, heat, flame, and recirculate modes.

Videos

Orion V2 Product Videos

Use these videos to preview the Orion V2 flame presentation and app-based control experience.

Orion V2 Dimensional Flames

See the Orion V2 multi-dimensional flame presentation and visual depth in action.

Orion WiFi Mobile App Features

Review the Orion app controls for flame style, color, heat, timer, and scheduling features.
