Description

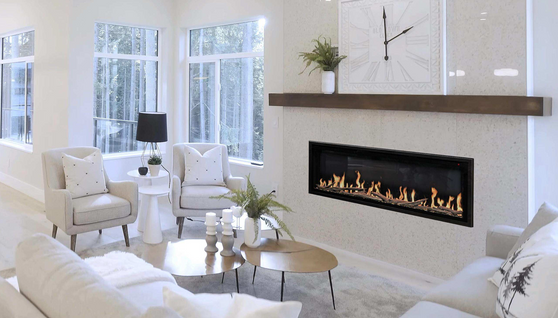

Modern Flames Orion® V2 Slim 60" Virtual Electric Fireplace
The Orion V2 Slim 60" is a single-sided linear electric fireplace designed for 2x6 wall applications, with built-in clean-face, self-trimming, and wall-mounted installation options. Orion V2 combines virtual LCD flame technology, a realistic log set, layered lighting, active ember effects, premium audio, and smart app control into one immersive electric fireplace platform.
Immersive Flame Technology
Orion V2 uses next-generation virtual LCD flame technology with 24 flame options available out of the box. Multi-dimensional flame styles, richer colors, deeper blacks, and adaptive brightness help create a more realistic fire presentation throughout the day.
Built for Flexible Installs
The Slim series offers a single-sided view with built-in clean-face, self-trimming, or wall-mounted installation options. Its shallow firebox suits 2x6 wall applications, remodels, and feature-wall projects.
Heat, Sound & Smart Control
PTC ceramic heating provides 5,000 BTU at 120V or 10,000 BTU at 240V. Built-in speakers, Bluetooth audio streaming, ambient crackling sounds, remote control, and the Modern Flames+ app create a complete fireplace experience.
Key Highlights
24 Flame Options
Includes flagship multi-dimensional flame styles plus additional flame colors, legacy looks, and theme-style experiences that can evolve through the Modern Flames+ app.
Premium Sound
Custom Modern Flames speakers support immersive crackling fire sounds and Bluetooth audio streaming for music, podcasts, or ambient soundscapes.
Realistic Logs & Ember Bed
The Slim series includes a realistic log set, active glowing ember bed, and downlighting to add depth and movement to the hearth.
Modern Flames+ App
The Modern Flames+ app allows additional flame styles and video experiences to be downloaded directly to the fireplace. The fireplace can store up to six app-delivered experiences at a time, allowing the look to adapt as new content becomes available.
What's Included
Included Fireplace Features
The Orion V2 Slim is designed as a complete premium electric fireplace platform with flame, heat, lighting, sound, and control features built in.
Fireplace & Flame System
- Orion V2 Slim 60" electric fireplace
- Next-generation virtual LCD flame technology
- 24 flame options available out of the box
- Three flagship multi-dimensional flame styles
- Adaptive flame brightness
Media, Lighting & Audio
- Highly realistic log set
- Active glowing ember bed
- Multi-color adjustable flame effects
- Multi-color ember bed and downlighting
- Built-in speakers with Bluetooth audio streaming
- Three ambient crackling sound options
Controls & Installation
- Premium Orion remote control
- WiFi/app control through Modern Flames+
- Built-in touch controls
- 120V / 240V dual-voltage power; 120V plug included, hardwire ready
- Built-in clean-face, self-trimming, or wall-mounted installation options
- Built-in trim kit and wall mount bracket
Optional Accessories
TruWood™ Premium Timber upgrade kits are sold separately where applicable. For an upgraded log appearance, the optional TruWood kit adds taller, more dimensional wood visuals for compatible Orion Multi and Slim fireplaces. For this 60" Slim model, use the TWS-56/60-SP installation guide listed in Downloads.

Specifications
OR60-SLIM-V2 Specifications
Review appliance, viewing, and opening dimensions for your installation. Allow the required clearances and use the Slim installation manual for complete framing details.
[[SPECIFICATIONS]]
| Specification | OR60-SLIM-V2 |
|---|---|
| Series | Orion V2 Slim |
| Model Number | OR60-SLIM-V2 |
| Heating Capacity | 5,000 BTU at 120V / 10,000 BTU at 240V |
| Voltage / Power | 120V / 240V dual voltage; 120V plug included, hardwire ready |
| Appliance Dimensions | 60" W x 19-5/8" H x 6-5/16" D |
| Finished Opening - Self-Trimming | 58-1/2" W x 19-1/8" H x 6" minimum D |
| Viewing Area | 55-1/2" W x 14-3/8" H |
| Rough Opening - Built-In Clean Face | 58-1/2" W x 19-1/8" H x 6-1/2" minimum D |
| Install Options | Single-sided built-in clean face, self-trimming/slide-in, or wall mounted |
Downloads
Downloads & Resources
Use the links below for installation planning, product literature, remote operation, and optional TruWood accessory information.
| Document | What It Covers | Download |
|---|---|---|
| Installation Manual - Orion V2 Slim | Owner and installation manual for Orion V2 Slim fireplaces. | Open Manual |
| Orion V2 Catalog / Brochure | Series overview, features, installation options, model lineup, and dimensions. | Open Brochure |
| Orion Remote Guide | V2 remote button map and instructions for flame style, lighting, sound, thermostat, and heat; see manual pages 23-27. | Open Remote Guide |
| OR60-SLIM-V2 Spec Diagram | 60" model dimensional drawing and technical reference. | Open Spec Diagram |
| TruWood Slim 56/60 Installation Guide | Installation instructions for the optional TWS-56/60-SP Slim timber kit. Confirm the kit for your model before ordering. | Open TruWood Guide |
Remote
Remote & App Controls
Control the Orion V2 Slim with the included handheld remote or through the Modern Flames app for expanded flame, lighting, heater, timer, and scheduling options.
Flame & Speed
- Power on/off
- Home button resets all zones to default
- Cycle between four flame styles, including the custom style, and adjust flame color
- Increase or decrease flame speed for the current style
Lighting & Ember Bed
- Switch between 10 RGB downlight colors plus auto cycle
- Adjust downlight brightness
- Switch between 10 RGB ember bed colors plus auto cycle
- Adjust ember bed brightness
Heat & Sound
- Sound control with four levels
- Choose Normal, Starry Night, Stormy Night, or Bluetooth sound modes
- Heat cycles through off, fan, low, and high
- Preset controls for fast scene adjustments
Handheld Remote
The premium remote gives direct control over power, flame styles, lighting, sound, and heat functions.
Handheld Remote Features
- Power, home, and preset controls for fast scene changes
- Flame style and flame speed adjustments
- Downlight and ember bed color controls
- Sound mode, volume, thermostat, and heat level control
Bluetooth & WiFi App Controls
The Modern Flames app adds phone-based control for flame style, flame color, ember bed, heater, timer, and weekly scheduling.
Orion App Control Overview

Main Controls
Quick access to power, flame style, flame speed, flame volume, brightness, heater, and timer controls.
Flame Style Options
Select between available flame styles and open the color menu for each flame presentation.
Flame Color Menu
Choose flame colors including yellow, orange, blue, green, purple, and white.
Ember Bed Color
Adjust ember bed color, brightness, accessory lighting, and color cycle settings.
Heater Controls
Set temperature units, thermostat target, and heater output level from the app.
Timer Controls
Set the sleep timer from no timer up to 8 hours, or open weekly scheduling.
Weekly Program
Create weekly schedules by day with visual status colors for off, heat, flame, and recirculate modes.
Videos
Orion V2 Product Videos
Use these videos to preview the Orion V2 flame presentation and app-based control experience.
Orion V2 Dimensional Flames
See the Orion V2 multi-dimensional flame presentation and visual depth in action.
Orion WiFi Mobile App Features
Review the Orion app controls for flame style, color, heat, timer, and scheduling features.
